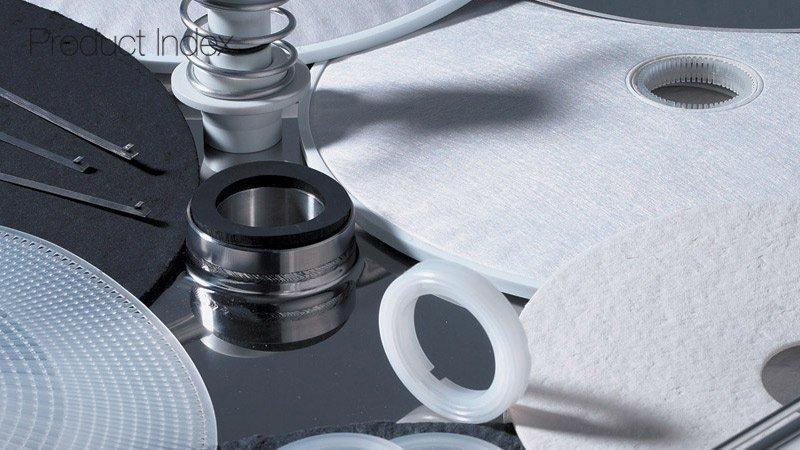

Depth
filter sheets comprises a complete range of products tailored specially
for applications where purity and quality are paramount. From the removal
of coarse matter right through to sterilising filtration, there is a product
ideally suited for all applications. All products are carefully formulated
to provide particular filtration characteristics. Ongoing investment in
manufacturing facilities, coupled with stringent quality management practices
(backed up by conformance to ISO9001:2000), ensure consistent product
quality.
The
range comprises a number of main product groups:
XE range of filter sheets - for use in clarifying and sterilising filtration
duties
EE range of sheets for use where all cellulose fibre sheets are needed
W2N support sheet for depth filtration of bulk liquids, such as in beer
and lager production, fruit juice manufacture or the processing of gelatine
NA range of sheets for a wide variety of applications
BK range - for high performance speciality applications
Proc 3 sheets which incorporate activated carbon for colour, odour and
taste correction.
go top
Incorporation of depth filter sheets in Lenticular
module format means that customers can enjoy the advantages of efficient,
economical filter media in a robust, stable, non-compressible module.
Modules and housings are available in both 12inch and 16inch diameter.
We incorporate all of its media grades in this format.
We also incorporated a number of important design features in the new
CARLENT module range. An interlocking disc design improves lateral strength
and rigidity, whilst ensuring that only polypropylene to polypropylene
contact throughout the internal core of the module. This alleviates any
compressibility problems inherent in competitor's designs. This polypropylene
centre core also protects against fibre release into the filtered product.
All standard modules incorporate a heavy duty non-woven polyester scrim
which gives improved resistance to back pressure shock and a much improved
back washing capability, in addition to providing an appreciable degree
of pre-filtration prior to the depth filter medium.
Pre-compression during manufacture to precise dimensions eliminates the
need for re-tightening down procedures. Optimum performance is achieved
without reliance on operational procedure.
Advanced design of the FDA quality polypropylene separator discs and sealing
rings promotes more even liquid flow within each cell. This in turn tends
to reduce the pressure drop across the module, leading to longer module
life, shorter filtration cycles and more consistent filtrate quality.

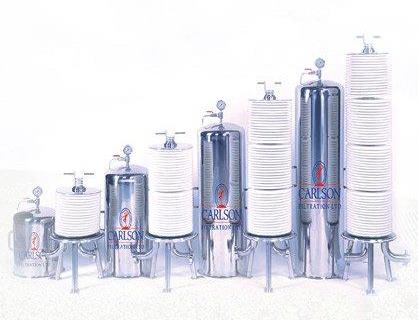

Lenticular housings
These are available in 12" and 16" diameter in either single
or multi module version, up to 4 high, to suit small scale laboratory
or pilot plant production to large scale continuous production. These
can be stand alone or skid mounted.
Lenticular
module lifting device
In 16" diameter format the weight of a used module can be unsuitable
for manual lifting. This is especially true when multiple housings, with
3 to 4 high modules in each, have to be changed out. Since a suitable
hoist is required to remove the dome cover we developed a lenticular lifting
device to utilise this hoist. The lifting device can remove the complete
set of spent modules from a housing in one simple and safe lift. The lifting
device comes in sizes to accommodate 2, 3 or 4 modules high. The lifting
device simply clamps the lower module, lifts the complete stack of modules
and these spent modules can then be discharged into a suitable disposal
unit with a pull of the discharge handle.
go
top

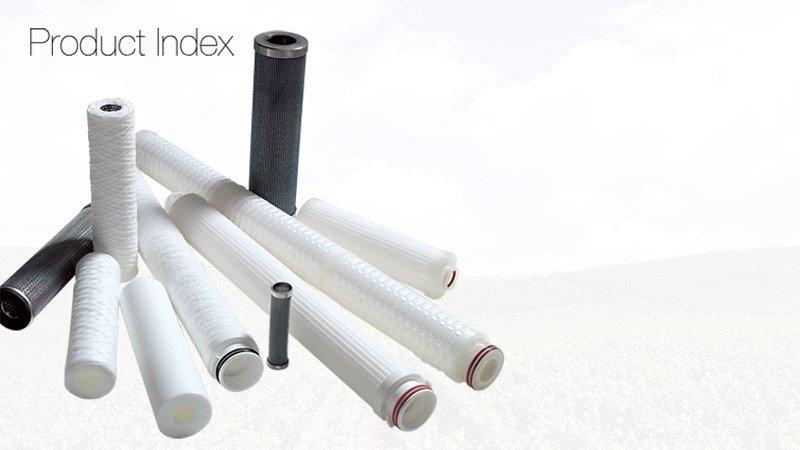

Complementary
Filtration
As an alternative to either sheet filter media or
the lenticular filtration system, process cartridges can be used for some
filtration requirements
Trap filtration
We have a range of wound, depth filter cartridges. They have high flow
rate and dirt holding capacity and long life. They allow ease of installation
combined with a full range of micron ratings from 1 to 100um. Chemical
compatibility is provided through a range of media materials on support
cores of polypropylene, stainless steel, or tin plated steel.
All polypropylene particulate cartridges
Absolute or nominally rated, all polypropylene filter cartridges exhibiting
higher throughput, low pressure loss, high dirt holding capacity, long
on-stream life, lower filtration costs, ideal for pre-filtration and clarifying
of liquids. Available in micron ratings from 0.5 to 100 microns and in
10", 20", 30" and 40" lengths. Thermal bonding of
the assembly not only guarantees the cartridge integrity but also benefits
users by eliminating the need for glues or adhesives, thus minimising
levels of extractables and broadening the range of chemical compatibility.
PES Membrane Cartridges
Polyethersulfone membranes are encased and supported by all polypropylene
materials. Pore sizes range from 0.2 to 0.65 microns and lengths from
10" to 40".
Housings
We can also supply a wide range of single and multi stack all stainless
steel housings capable of accommodating cartridges sized 10" to 40"
and with a variety of end caps.
Filter Bags and Bag Housings
Using only top quality filter fabrics to ensure consistent quality and
performance, filter bags are available in felt, nylon monofilament, polypropylene
and polyester in a range of micron ratings from 1 to 1500um. To accommodate
these bags we can offer a range of stainless steel, single, double and
mini bag housings.
Filter papers
These are designed for a wide range of applications in the beverage, soft
drinks, pharmaceutical and chemical industries. These are available in
either creped or plain paper and in sizes to suit all commercially available
presses .
go
top

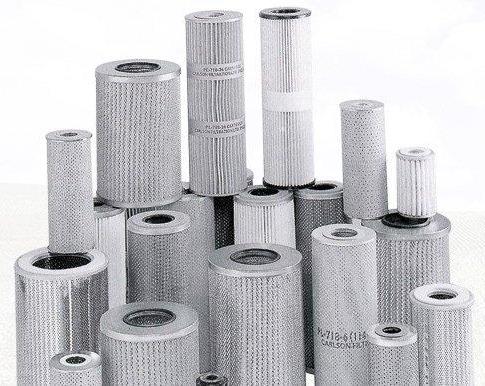

Oil Filtration
We can also
able to offer a comprehensive range of pleated paper & synthetic media
filter cartridges/elements including:
Fuel and Lubricating Oil Filters.
Fullers Earth cartridges
Activated Alumina cartridges
Our oil filtration products are manufactured to high quality standards
and enjoy an excellent reputation in their varied and exacting applications.
We work closely with our raw material suppliers. We keep abreast of development
in filtration materials and incorporate these in our continuous product
development programme.
